The Supplies Mob
TRIPOD WINCH 25m SUITS HSTP29
TRIPOD WINCH 25m SUITS HSTP29

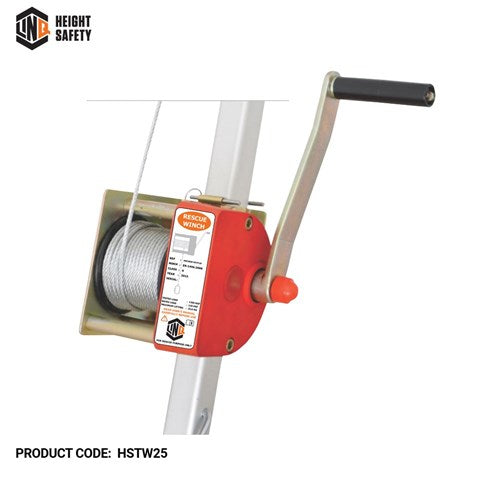

Tripod Winch 25M
- 5.6 x Mechanical Advantage.
- It is to be used for raising or lowering of personnel or material into confined spaces.
- It is equipped with a mounting plate for robust fitting onto the tripod (HSTP29).
- Maximum lifting length: 25m.
- Corrosion resistant steel body
- Galvanised Steel Cable, 4.5mm Diameter
- Exceeds standard EN1496:2006
- Passed the corrosion test in accordance with ISO 9227:1990 - 24 hours
- Static Strength: 13.5kN for 3 minutes
- 203kg test mass can be raised by device without failure following dry and wet conditioning. Vertical distance of fall on release of device handle = 0 m.
- Rescue load: 300kg combined weight of rescuer and rescued - 5:1 safety factor applied
